Top model with 4-way components

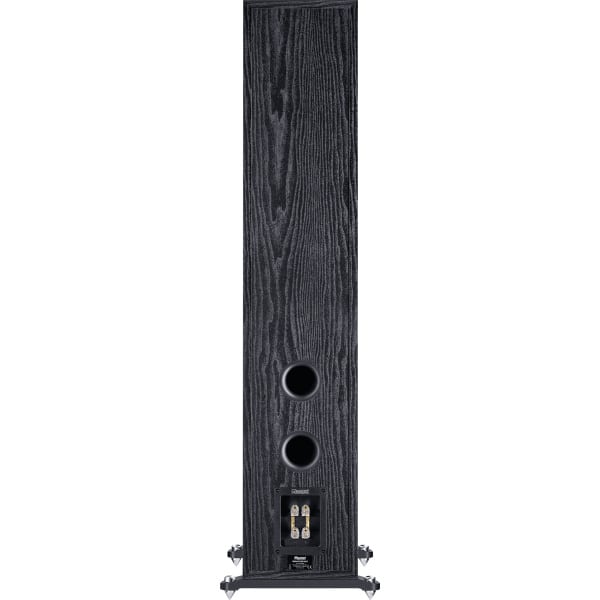

The Signature 507 is just as slim as the 505, but a bit higher at 1030 mm. The increased size is due to the dual woofer used, with the result that the 507 has a 170 mm bass-midrange unit as well as woofers of the same size, enabling it to reproduce correspondingly lower frequencies. It does, of course, also have the Hi-Res certified dual tweeter module with 2 fmax domes. The front panel with its integrated wave guides also optimizes the dispersion characteristics. Like all the speakers in the Signature 500 range, the sturdiest possible connection terminals are used, which allows the best cables to be used, as well as facilitating bi-wiring or bi-amping operation. It goes without saying that the 507 is suitable both as a stereo speaker and as a front channel in a home cinema system.
Reviews
WHAT DO TRADE MAGAZINES SAY ABOUT THIS PRODUCT?
Technical Specifications
PRINCIPLE
Floorstanding Speaker, 4 way, double bass, bass reflex
DRIVERS
2 x 6.5? woofer 1.2″ dome-tweeter 0.75″ super-tweeter 1 x 6.5″ midrange
POWER HANDLING (RMS/MAX.)
200 / 350 Watts
SENSITIVITY (2.8V/1M)
92 dB
IMPEDANCE
4 ? 8 Ohms
FREQUENCY RESPONSE
23 – 53000Hz
CROSSOVER FREQUENCIES
400 Hz / 2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT
> 30 watts
