Magnat Signature 503 Pair

68,990.00

 • Design: 3 way, bass reflex
• Sensitivity: (1W/1M): 91Db
• Equipment: 6.5• mid-woofer, 1.2• dome- tweeter, 0.75• super-tweeter
• Impedance: 4 • 8 Ohms
• Power Handling (RMS/MAX): 100/170 watts
• Frequency Response: 32Hz – 53 kHz
• Recommended Amplifier Output: > 20 watts

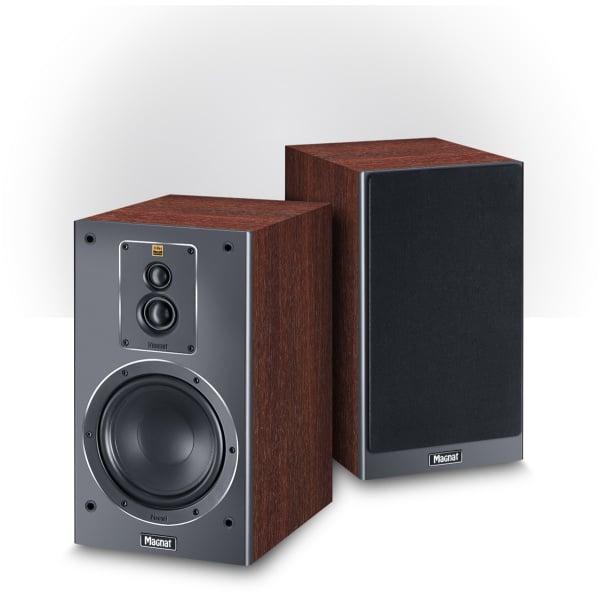

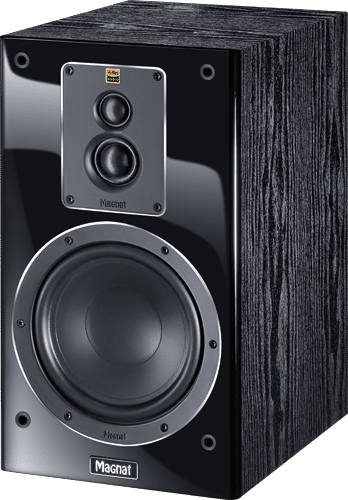

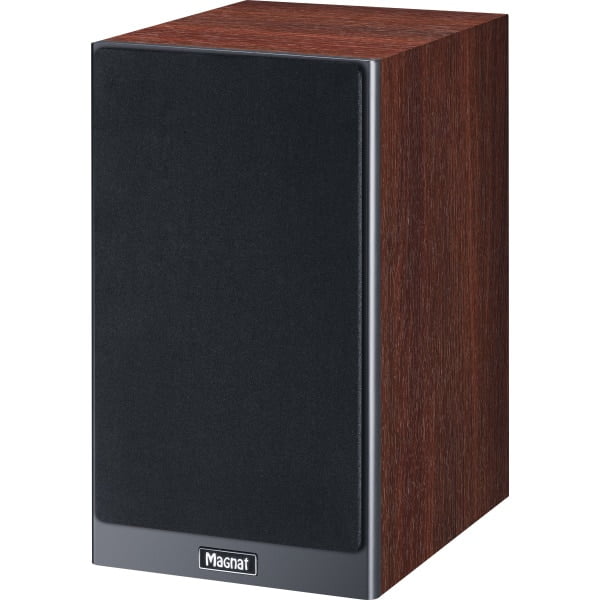

3-way shelf-top model for entry into the Signature world

The Signature 503 is, as a shelf-top speaker, the most compact representative of the new 500 range. As a three-way system, it combines the hi-res dual tweeter module with a 17 cm bass-midrange unit. It unites all this in a footprint smaller than an A4 sheet of paper and a height of 365 mm. The sturdy MDF housing is available in two elegant finishes: black ash or mocca. It is just as practical as a compact stereo solution as it is when using it as a surround sound speaker in a home cinema set-up. Thanks to identical components like the front panel systems, it delivers an absolutely homogeneous soundscape. The Signature 503 is the best proof that perfect sound does not necessarily require huge speakers.

Reviews

WHAT DO TRADE MAGAZINES SAY ABOUT THIS PRODUCT?

modernhifi.de 11/2019
modernhifi.de 11/2019
?Magnat has managed to create a surprisingly mature budget speaker with its Signature 503. The super tweeter is particularly pleasing with its fast response and exceptionally detailed resolution. The speakersthoroughly deserve the Hi-Res seal.?
areadvd.de 12/2019 (5.1 Set)
areadvd.de 12/2019 (5.1 Set)
?Magnat?s Signature 500 multi-channel ensemble in a classic 5.1 configuration is ideally suited for listeners who are looking for an enormous resolution, crystal-clear treble frequencies and excellent overall dynamics at an extremely fair price. Immaterial whether it is being used for a film?s sound or music material, the 5.1 set always ensures remarkable liveliness and an astonishingly fine resolution.?
lowbeats.de 12/2019
lowbeats.de 12/2019
?What is immediately audible is the high overall balance. You sit and listen and there?s nothing missing. Bravo.?
Heimkino 02/2020 (5.1 Set)
Heimkino 02/2020 (5.1 Set)
?Overall, the 5.1 set from the Signature 500 series is really fun and combines a balanced, neutral reproduction with an enormouslevel of enthusiasm.?

Technical Specifications

PRINCIPLE

3 way bass reflex

DRIVERS

6.5? woofer-midrange 0.75″ super-tweeter 1.2″ dome-tweeter

POWER HANDLING (RMS/MAX.)

100 / 170 watts

SENSITIVITY (2.8V/1M)

91 dB

IMPEDANCE

4 ? 8 Ohms

FREQUENCY RESPONSE

32 – 53000 Hz

CROSSOVER FREQUENCIES

2800 Hz / 17500 Hz

RECOMMENDED AMPLIFIER OUTPUT

> 20 Watts

DIMENSIONS (WXHXD)

205 x 365 x 282 mm

Brand

Variant

Product Type

ALL MAGNAT PRODUCTS ARE DESIGNED, ENGINEERED AND TESTED IN GERMANYSince the brand was founded in 1973, Magnat engineers have never stopped pushing the boundaries to develop high-quality products that sound good and provide emotion to their uses when they listen their music & movies.For 30 years, every component of Magnat products has undergone an elaborate, multi-stage development process and testing in our laboratory in Pulheim, near Cologne,before we allow the product to go into production. Through meticulous attention to detail and dedication, our engineers ensure that every component and system they design meets the highest standards of precision and reliability.
