LUMIN X1 (Black/Silver)

1,000,000.00



 STREAMING’S NEW CUTTING EDGE

WHY LUMIN X1

Never content, we’ve constantly been evaluating our streamers to see if there was any possible way to beat them. It’s taken years, but finally we’re ready to reveal?Streaming’s New Cutting Edge.

Re-engineered throughout

LUMIN X1 makes improvements in every possible location:

  • New processor delivers native DSD512 & PCM768 playback
  • Dual Mono design throughout maximises channel separation
  • Dual ES9038Pro SABRE DACs featuring 140dB dynamic range
  • Femto Clock System with precision FPGA distribution
  • New Output Buffer design
  • Dual Mono dual stage linear regulator
  • Optical Network provides complete isolation from network digital noise
  • USB Digital Audio Output supports Native DSD512
LUMIN Processor

Entirely new Power Supply

SUPPORTED STREAMING SERVICES

Spotify?MQA?Roon?TIDAL?TIDAL Connect?Qobuz?AirPlay-compatible?TuneIn?Multi-Room?READ MORE

LEEDH PROCESSING DIGITAL VOLUME CONTROL

LUMIN X1

SPECIFICATION

X1 SPECIFICATION

  • DSD SUPPORT:

    • Up to DSD512 22.6MHz, 1-bit
  • PCM SUPPORT:

    • Up to 768kHz, 16?32-bit, Stereo
  • ANALOG OUTPUT STAGE:

    • Dual ESS SABRE32?ES9038Pro DAC chips
    • Fully balanced layout with high-quality components
    • Output connectors coupled with dual LUNDAHL LL7401 output transformers
    • Femto Clock System with precision FPGA distribution
  • UPSAMPLING RATES & BIT DEPTHS:

    • DSD128 upsampling option for all files
    • PCM 384kHz upsampling option for all files
  • DIGITAL OUTPUT STAGE:

    • USB:
      • Native DSD512 support
      • PCM 44.1?768kHz, 16?32-bit, Stereo
    • BNC SPDIF:
      • PCM 44.1kHz?192kHz, 16?24-bit
      • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
  • OPTICAL NETWORK:

    • Industry-standard SFP
    • 1000Base-T Gigabit Ethernet
    • Adapter may be needed for your particular switch/cables
    • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

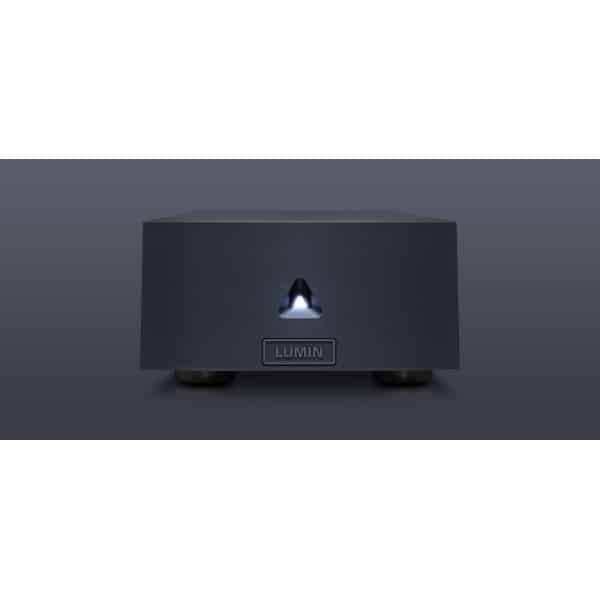

  • POWER SUPPLY:

    • External solid billet cnc dual-toroidal
    • Separate digital & analogue circuitry
    • Low-noise linear regulator
    • 9-pin Output Connector
  • PHYSICAL:

    • FINISH:

      • Black anodised brushed aluminium (with matching PSU)
      • Raw brushed aluminium (with matching PSU)

      LUMIN (SOLID ALUMINIUM CHASSIS):

      • 350mm (W), 345mm (D), 60mm (H), 8kg
    • PSU (SOLID ALUMINIUM CHASSIS):

      • 106mm (W), 334mm (D), 60mm (H), 4kg

SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS

  • STREAMING PROTOCOL:

    • UPnP AV protocol with audio streaming extension (OpenHome)
    • Roon Ready
    • TIDAL Connect
    • Spotify Connect
    • AirPlay-compatible
    • Gapless Playback
    • On-Device Playlist
  • APP FEATURES:

    • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
    • Tidal MQA icons to identify high-res music
    • Qobuz high-res icons to identify high-res music
    • Volume control
    • High-resolution artwork
    • Artwork caching
    • Search
    • Multiple tag handling
    • Composer tag support
    • Album-grouping in playlist
    • Automatic internet links to artists/album/songs
    • Saving and restoring of playlists (including Tidal and Qobuz)
  • SUPPORTED AUDIO FILE FORMATS:

    • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
    • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
    • Compressed (lossy) Audio: MP3
    • MQA
  • INPUT:

    • Ethernet RJ45 network 1000Base-T
    • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
  • ANALOGUE AUDIO OUTPUTS:

    • XLR balanced, 6Vrms, pin 2 Hot
    • RCA unbalanced, 3Vrms
  • SUPPORTED CONTROL DEVICES:

    • All models of Apple iPad (v2 or later). iOS 9.0 or later required. Full Retina Display support.
    • Android devices. Android 4.0 (Ice Cream Sandwich) or later required
  • OTHER:

    • Leedh Processing lossless digital volume control
    • Programme of Continuous Development ? Firmware-upgradable for further features and enhancements
Brand

Product Type

In 2012, two years after SACD rips became possible with the birth of DSD files, LUMIN launched the A1: the world's first DSD-capable network player. In 2014, LUMIN passed another milestone with the first server equipped with a zero-configuration UPnP music library.By building end-to-end expertise in the field of network music delivery, LUMIN has created an unrivalled proposition, combining high-speed/low-noise processing, balanced circuit design and support for the widest range of services and file formats, including Roon, Spotify Connect, Tune-In radio, Tidal, Qobuz and Airplay, MQA, DSD up to 512 and PCM up to 384kHz.The line-upOffering supreme audio performance and easy integration at every level, the current LUMIN range includes no fewer than six network players, three music transports, two dedicated music servers and an all-in-one player/amp system.
