Features KEF?s patented Uni-Q driver array

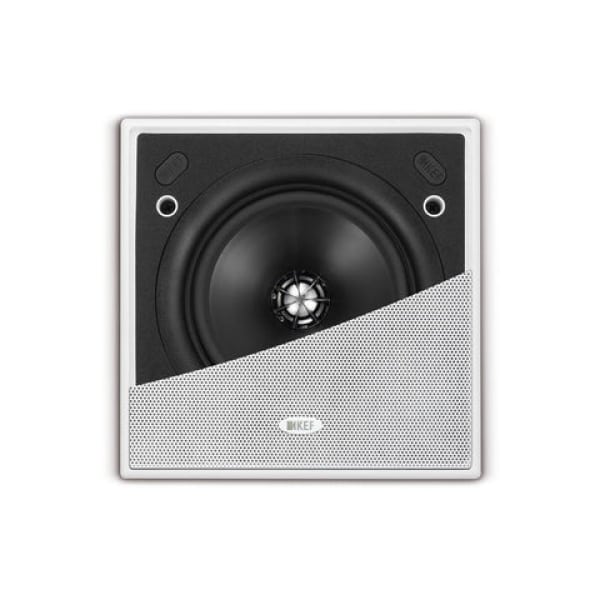

The stylish Ci130QS’s thin bezel and narrow rim allow for flawless visual integration into your wall or ceiling. KEF’s patented Uni-Q driver spreads sound over a wider area enabling you to use less speakers and still experience an even sound-stage.
Nomimal ?Impedance
8 Ohm
Sensitivity
87dB (2.83V/ 1m)
Crossover Frequencies
3.8kHz
Frequency Response
45Hz – 34kHz (?6dB) open backed
Drive Units
LF: 130mm (5.25in.)
HF: 19mm (0.75in.) Uni-Q
HF: 19mm (0.75in.) Uni-Q
Recommended Amplifier Power
10 – 100W
Product External Dimension (H X W X D)
184 x 184 x 84 mm (7.24 x 7.24 x 3.26 in.)
Cut-Out Dimensions (H X W)
158 x 158 mm (6.22 x 6.22 in.)
Mounting Thickness
Ceiling Thickness (Maximum): 24mm (0.95 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
77.9mm (3.07in.)
Optional Rough In Frame
RIF130S
Optional Rear Enclosure
RNC130S
