Exploring the Art of the Possible

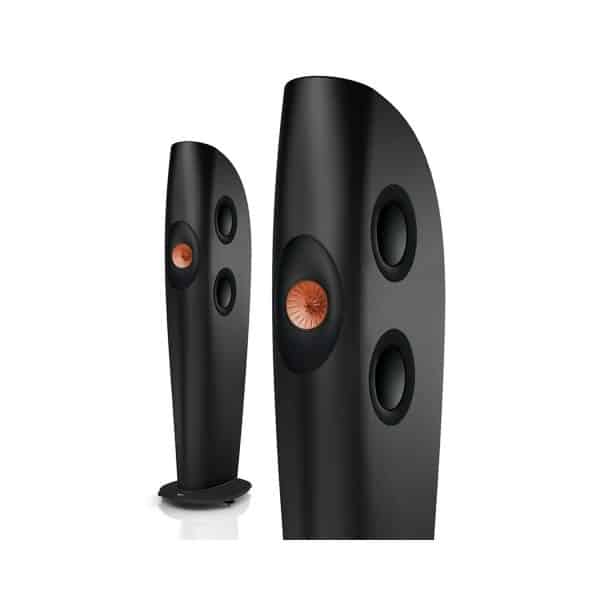

KEF BLADE is the top model in the range with four 225mm/9in. bass drivers and a Uni-Q MF/HF array in a 1590mm/62.5in. high cabinet.
KEF BLADE is the world?s first Single Apparent Source loudspeaker and the production version of the cost no object Concept Blade project KEF revealed at the Munich High End Show in 2009.
The inspiration was simple: to give some of the world?s most talented audio engineers complete freedom to create a speaker to showcase KEF?s technology leadership and powers of innovation. No preconceptions. No need to use existing components. And no design or cost restrictions whatsoever. After three years of original research and exhaustive testing, what our team came up with looked and sounded like no other speaker: Concept KEF Blade, whose startling acoustic precision was so enthusiastically acclaimed when it was first revealed at the Munich High End Show in 2009. But unlike glamorously radical concept cars that never see production, we decided it was simply too good not to take a step further.
Encouraged by all the reviews, and to mark KEF?s 50th anniversary, the design team was given the go-ahead to develop this stunning concept for production, and two more years were spent painstakingly refining the concept to produce an edition that serious audiophiles could actually own. We devised ingenious applications of different new materials to replicate the shattering performance of the original, using innovative technologies to deliver the acoustic capabilities required of such a super-premium product.
We perfected a method of manufacturing the complex parabolic enclosures. The drivers gained sophisticated enhancements to recapture the magic of listening to the one-off prototype. What was previously thought impossible was set to become a reality. The result is KEF Blade ? a unique synthesis of cutting edge audio technology and groundbreaking design. While the technologies involved are very advanced, the original focus on simplicity remains every single component operates so comfortably within its performance envelope that they work together as a single, flawlessly coherent unit ? in effect, a giant full range Uni-Q driver array. Its a spectacularly lush, warm and expansive sound. Effortlessly accurate and as natural, intricate and emotionally authentic as a live performance.
If you?re passionate about music, we think you?ll agree that the years of development that made the concept a reality were very well spent indeed.
Single Apparent Source
Like listening to one voice rather than many, sound from a single source is inherently clearer. Not only are the acoustic centers of the HF and MF drivers in the Blade & Blade Two Uni-Q array coincident, but the four LF drivers, (9in. for Blade, or 6.5in. for Blade Two) are mounted symmetrically equidistant from it so that their acoustic centers occupy exactly the same point in space.
To avoid dissipating the energy of such potent bass drivers in exciting the cabinet (and thereby generating resonance, especially at high volume), the large kinetic forces involved are cancelled out by mounting the LF drivers rigidly together, back-to-back. By minimizing cabinet coloration, this highly effective configuration partly accounts for the Blade & Blade Two?s natural-sounding and engagingly musical performance.
Discrete Bass Chambers
The twinned pairs of bass drivers are mounted in discrete chambers separated by an internal partition. By increasing the frequency of any internal standing waves to way beyond the crossover point, this reduces the need for damping material (which can otherwise impair bass quality). Nothing has been overlooked in the quest for the ultimate clarity, right across the frequency range.
Terminals & Terminal Links
Two pairs of the finest audiophile quality WBT connectors allow bi-wiring or bi-amping to optimize the retrieval of low level detail in the music.
Low Order Crossovers
The simple low order crossovers specified for both Blade & Blade Two employ the best components available, carefully selected by a rigorous auditioning process so that every part of the signal path is fine-tuned for maximum clarity.
The patented screw-in linking plugs are to full audiophile specification (as well as simplifying set-up by eliminating fiddly wiring links). All the crossover components are individually wired by hand rather than mounted on a conventional printed circuit board. As well as being more environment-friendly, this optimizes both reliability and sound quality by assuring the cleanest possible signal transmission.
- Three-way bass reflex,
- Single apparent source driver configuration
Uni-Q driver array:
- MF: 125mm (5in.) Li-Mg-Al /LCP hybrid cone
- HF: 25mm (1in.) Al dome
LF: 4 x 225mm (9in.) with force cancelling
Frequency range free field (-6dB)???????????
28Hz ? 45kHz
Frequency range typical in room bass response (-6dB)?
Frequency Response (?3dB)??????
- 40Hz ? 35kHz ?3dB
- (-6dB at 28Hz)
50 ? 400W
Harmonic distortion 2nd & 3rd harmonics (90dB, 1m)???
- <0.5% 40Hz ? 100kHz
- <0.2% 200Hz ? 10kHz
Maximum output (peak sound pressure level at 1m with pink noise)????
4? (min. 3.2?)
57.2 kg (126 lbs)
Dimensions ? with plinth (H x W x D)????
- 1590 x 363 x 540 mm
- 62.5 x 14.3 x 21.2 in.
