|System Type||2 ½ way, downwards firing port, with BassTraxTMTractrix diffuser. Twin cavity coupled reflex|
|Recommended amplifier power (Watt RMS)||35- 150|
|Continuous power handling (Watt RMS)||75|
|Sensitivity (2.83 Volt @ 1m)||90dB|
|Nominal impedance||8 Ohm|
|Frequency response (-6dB typical in room)||36Hz- 34kHz|
|Drive unit complement||1 x 150mm IsoFlareTM, multi-fibre bass / mid with 25mm titanium dome compression tweeter 1 x 150mm multi-fibre bass|
|Crossover frequency||250Hz & 1.7kHz|
|Crossover type||2nd order low pass, 1st order high pass|
|Dimensions – HxWxD||984 x 200 x 320mm (38.8 x 7.9 x 12.6”)|
|Weight – Each||18.9kg (41.7lb)|
|Finishes||Dark Oak / Black Oak / Piano Gloss Black / Piano Gloss White|
- Sorry, this product cannot be purchased.

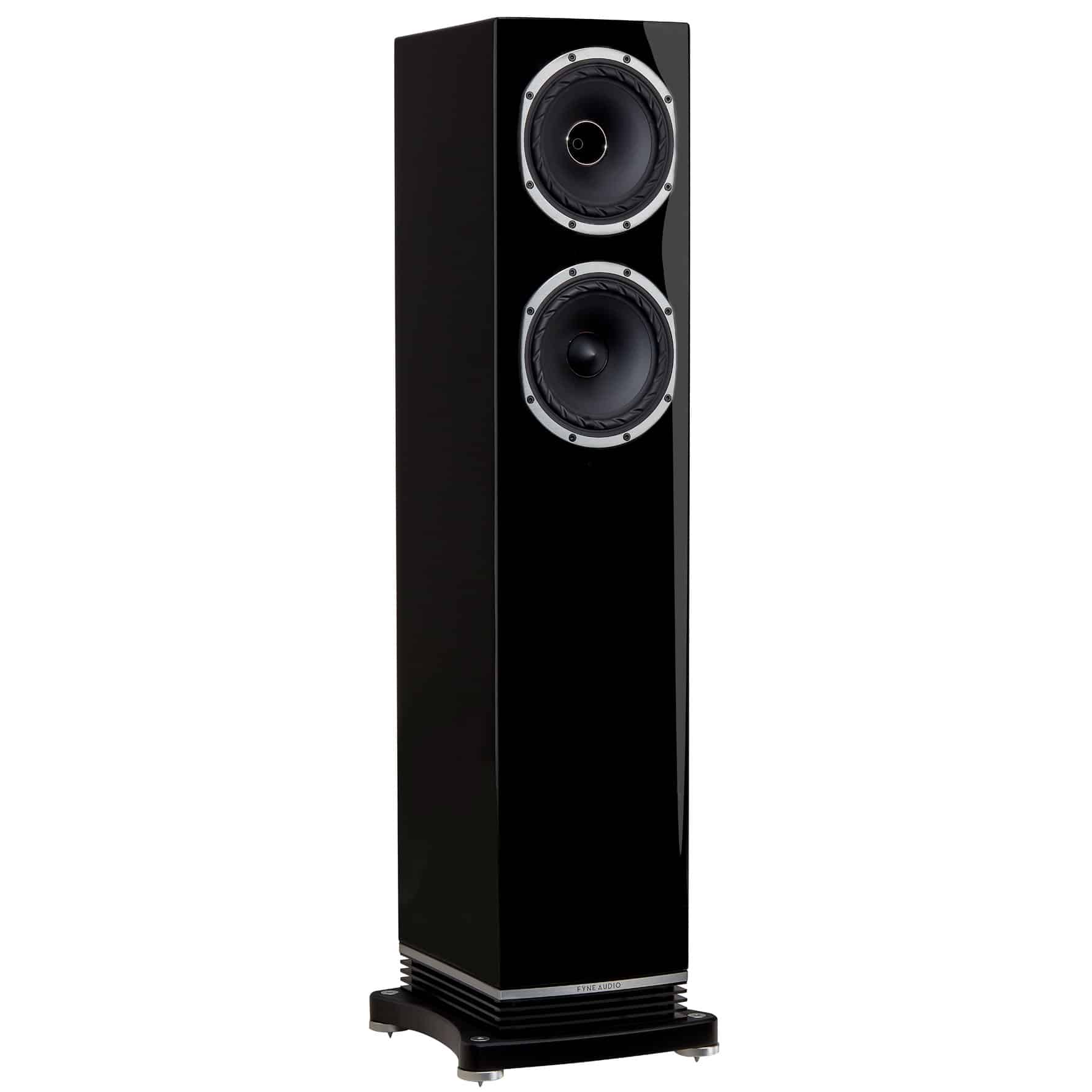

The award winning F501 is the smaller of the two floorstanding loudspeakers in the F500 series but capable of delivering low bass and effortless dynamics from a compact, small footprint cabinet. Bringing additional scale and power to the F500 series’ signature clarity and articulation, the 150mm (6″) proprietary IsoFlareTM driver is accompanied by a matched 150mm (6″) bass driver. The IsoFlareTM driver delivers isotropic energy radiation with point source constant directivity providing outstanding stereo imaging, even off axis. Ideal for small to medium-sized rooms, the F501 is supplied with a dedicated plinth incorporating our BassTraxTM Tractrix diffuser system, which integrates bass energy uniformly into the room
The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects.
