TECHNICAL INFORMATION
TWEETER
Acoustic Energy?s bespoke 25mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching. Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high-power neodymium motor assembly ensures reliable, distortion-free high-volume playback.
DRIVERS
The 130mm bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures. The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.
CABINET
The 100 Series uses thin, 15mm high density (HDF) enclosures with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets. The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The AE109? and AE120? feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.
SPECIFICATIONS

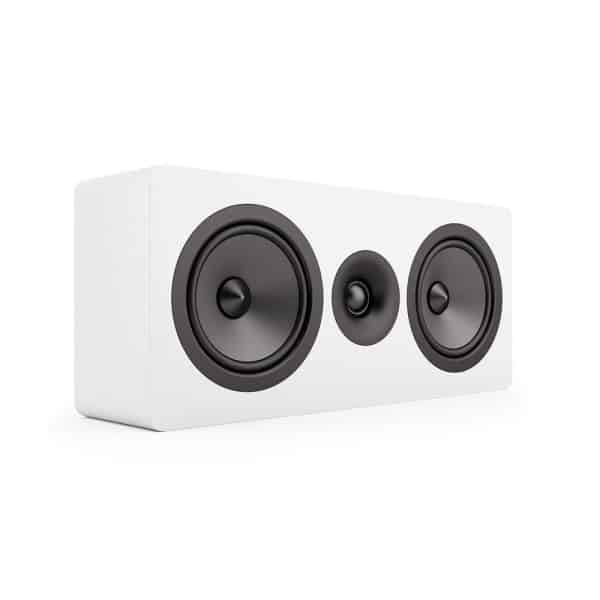

AE105
Drive Unit: 130mm paper cones (one passive)
Tweeter: 25mm fabric dome
Frequency Range: 35Hz ? 26kHz
Sensitivity: 91dB
Peak SPL: ?
Power Handling: 120w
Crossover Frequency: 3kHz
Impedance: 6ohms
Design: 2-way
Grilles: Slim, cloth magnetic fit (black and light grey)
Dimensions (mm): 450 x 200 x 120 (HxWxD)
Weight: 4.7kg (each)
Finishes: Black, Satin White and Walnut vinyl veneer
